Card Guide A (160mm)

Features:
  • Card thickness 2.0mm
Card Guide A (160mm)
Specifications:
 Dimension(mm)  Part No.  Packs of
 160mm  M-CGA160  50

Card Guide A (160mm)

Features:
  • Card thickness 2.0mm
  • Colors: Black, gray, red, yellow, green
Card Guide A (160mm)
Specifications:
 Dimension(mm)  Color  Part No.
 160mm  Black  M-CGA160
 Gray  M-CGA160-G
 Red  M-CGA160-RE
 Yellow  M-CGA160-Y
 Green  M-CGA160-GN



Card Guide B (80mm)-Left

Features:
  • Card thickness 2.0mm
Card Guide B (80mm)-Left
Specifications:
 Dimension(mm)  Part No.  Packs of
 80mm  M-CGB80L  50

Card Guide B (80mm)-Right

Features:
  • Card thickness 2.0mm
Card Guide B (80mm)-Right
Specifications:
 Dimension(mm)  Part No.  Packs of
 80mm  M-CGB-80R  50

Card Guide C (220mm or Custom length)

Features:
Card Guide C (220mm or Custom length)
Specifications:
 Dimension(mm)  Part No.  Packs of
 220mm  M-CGA220  50
 Custom length: xxx (mm)  M-CGAxxx  50

Card Guide D

Features:
  • 160mm, 220mm or Custom length
Card Guide D
Specifications:
 Dimension(mm)  Part No.  Packs of
 160mm  M-CGD160  50
 220mm  M-CGD220  50
 Custom length: xxx (mm)  M-CGDxxx  50

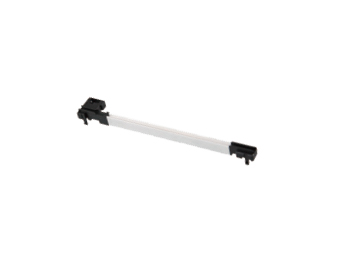

Card Guide for cPCI power supplies

Features:
Card Guide for cPCI power supplies
Specifications:

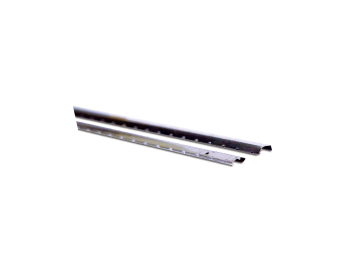

EMC Spring

Features:
EMC Spring
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-J03  10
 6  M-J06  10

PCB Holder

Features:
  • Material: ABS
  • Finish:Chrome Plated
PCB Holder
Specifications:
 Dimension(mm)  Part No.  Packs of
 15x9.1x9.7  M-N01  50
 12.8x7.4x8.6  M-N02  50
 11x10.1x8.6  M-N03  50
 12x9x6.5  M-N04  50

Microswitch

Features:
Microswitch
Specifications:
 Dimension(mm)  Part No.  Packs of
 25.4  M-M01  50
 50.8  M-M02  50

Sleeve

Features:
  • Metal sleeve, brass, nickel-plated, pressed-in into front panels
Sleeve
Specifications:
 Dimension(mm)  Part No.
 M2.5 x 1mm  M-101-1
 M2.5 x 2mm  M-102-2
 M2.5 x 5mm  M-103-5

Collar Screw

Features:
  • Steel, nickel-plated
Collar Screw
Specifications:
 Dimension(mm)  Part No.
 M2.5 x 12.3mm  M-471

Front Cross Rail

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Front Cross Rail
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40A  1
 42  M-B42A  1
 63  M-B63A  1
 84  M-B84A  1

Rear Cross Rail-Type A

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type A
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40A  1
 42  M-B42A  1
 63  M-B63A  1
 84  M-B84A  1

Rear Cross Rail-Type B

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type B
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40B  1
 42  M-B42B  1
 63  M-B63B  1
 84  M-B84B  1

Rear Cross Rail-Type C

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Cross Rail-Type C
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-B40C  1
 42  M-B42C  1
 63  M-B63C  1
 84  M-B84C  1

Center Cross Rail

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Center Cross Rail
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-C40  1
 42  M-C42  1
 63  M-C63  1
 84  M-C84  1

Guide Cross Rail

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Guide Cross Rail
Specifications:
 Dimension(T)  Part No.  Packs of
 40  M-D40  1
 42  M-D42  1
 63  M-D63  1
 84  M-D84  1

Front Flange

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Front Flange
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-E03  1
 4  M-E04  1
 6  M-E06  1
 7  M-E07  1
 9  M-E07  1

Rear Flange

Features:
  • Material: Aluminum extrusion
  • Finish:Alochrom
Rear Flange
Specifications:
 Dimension(U)  Part No.  Packs of
 3  M-F03  1
 4  M-F04  1
 6  M-F06  1
 7  M-F07  1
 9  M-F07  1

Tapped Strip

Features:
  • Material: CRS
  • Finish:Zinc plated
  • Custom length available
Tapped Strip
Specifications:
 Dimension(T)  Part No.  Packs of
 84  M-G84  10

Insulating Strip

Features:
  • Material: PP
  • Custom length available
Insulating Strip
Specifications:
 Dimension(T)  Part No.  Packs of
 84  M-H84  10
